1、Product Introduction

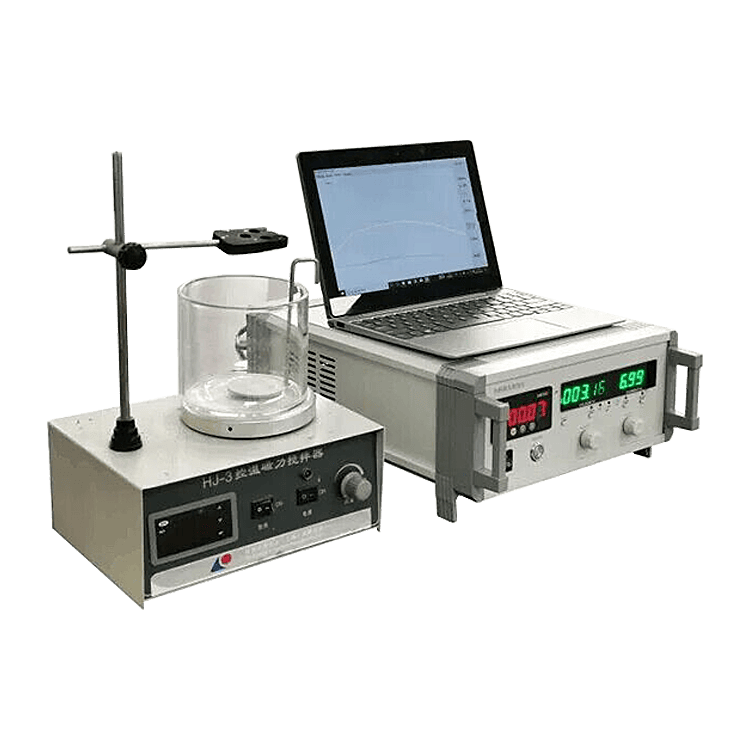

HST-EP06X Electrolytic polishing corrosion tester is a metallographic sample making instrument integrating electrochemical polishing and corrosion functions. Suitable for factories, colleges and universities, scientific research institutions and other laboratory use. The equipment can be used for the preparation of metallographic samples on the basis of electrochemical principle. It can also be used for the polishing of metallographic samples and corrosion of metallographic samples. It has the advantages of quick sample preparation, good repeatability and no deformation layer machining, etc. It is an ideal equipment for the preparation of metallographic samples for non-ferrous metal samples, steel, especially stainless steel.
2、Main Technical parameters
Item
specifications
Working voltage
AC220V 50 hz
Electrolytic output
DC 0~100V / 0~6A, continuously adjustable, digital display;
Voltage and current regulation, display accuracy
Voltage 0.01V/ current 0.001A
Constant temperature range
At room temperature to 100 ℃ + / - 1 ℃
Time display
Working hours can be set
Container capacity
800 ml
Cooling system
Cooling coil, external tap water cooling
Electric box size
292 * 380 * 120 mm
Magnetic agitator size
240 * 190 * 130 mm
Total power
900 w
Total weight
15 kg
