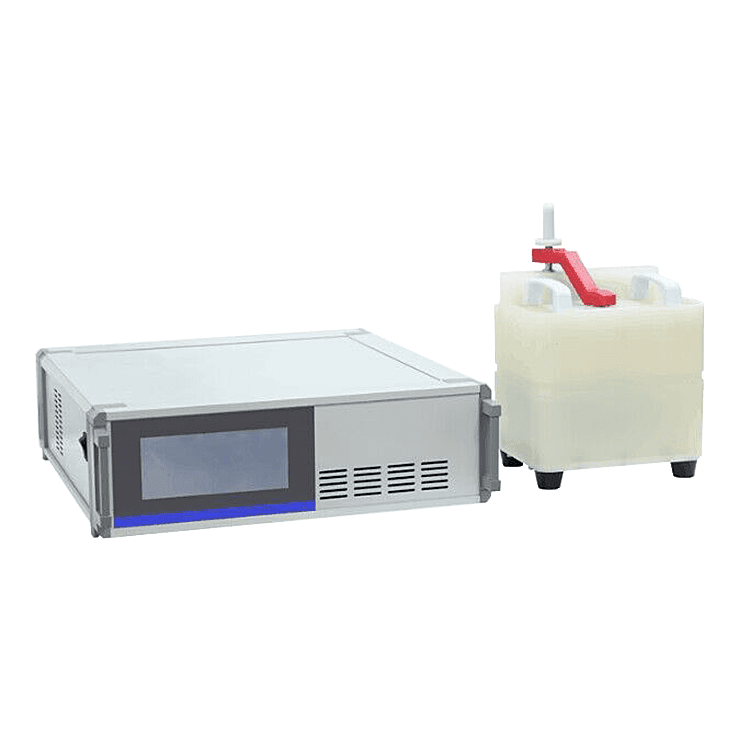

KS-EP3000 Electrolytic Polishing Corrosion Tester
1、Application:
HST-EP3000 Electrolytic Polishing and Corrosion Instrument is a metallographic sample preparation instrument integrating electrolytic polishing and corrosion functions. It is suitable for use in laboratories such as factories, colleges and universities, and scientific research institutions.
The equipment uses electrochemical principles to prepare metallographic samples, and can also be used for polishing metallographic samples, and can also be used for corrosion of metallographic samples. It has the advantages of fast sample preparation, good repeatability, and no mechanically processed deformation layer. It is an ideal equipment for preparing metallographic samples of non-ferrous metal samples, steel, especially stainless steel.
2、Main technical parameters
|
Operating Voltage |
AC220V 50Hz |
|
Electrolysis output |
DC 0~60V / 0~20A, continuously adjustable, digital display |
|
Voltage and current regulation, display accuracy |
Voltage 0.01V/current 0.001A |
|
time display |
Working hours can be set by yourself |
|
Electrolyte capacity |
300~1000ml |
|
cooling system |
External tap water cooling |
|
Electric box size |
215×507×460mm |
|
Corrosion Workbench |
270×230×340mm |
|
Total Instruments: |
10Kg |
