1、Applications and Features

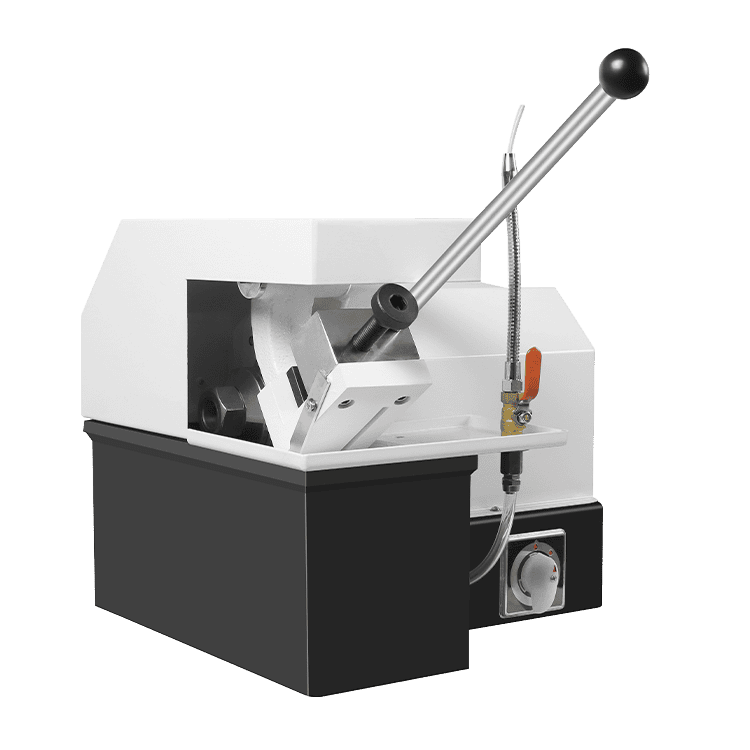

The KSCUT-35 metallographic sample manual cutting machine is suitable for cutting samples of various metal and non-metal materials in order to observe the metallographic and petrographic structures of the materials.
● This machine is equipped with a cooling system to take away the heat generated during cutting.
● The cutting machine uses a high-speed rotating thin-reinforced grinding wheel to cut the sample.
● The machine has the advantages of easy operation and easy maintenance, and is superior to similar domestic products.
● The cutting range and transmission power are also larger than similar domestic products, making it the best choice for sample cutting.
2、Main Technical Parameters
Model
KSCUT-35
Maximum cutting section
φ35mm
Spindle speed
2800 r/min
Cutting power
1.1kw
Input voltage
3-phase 380V、50HZ
Grinding wheel specifications
250*2*32mm
Dimensions
429*410*360mm
Package Size
540*458*479mm
Net weight
45kg
Gross weight
53.7kg
