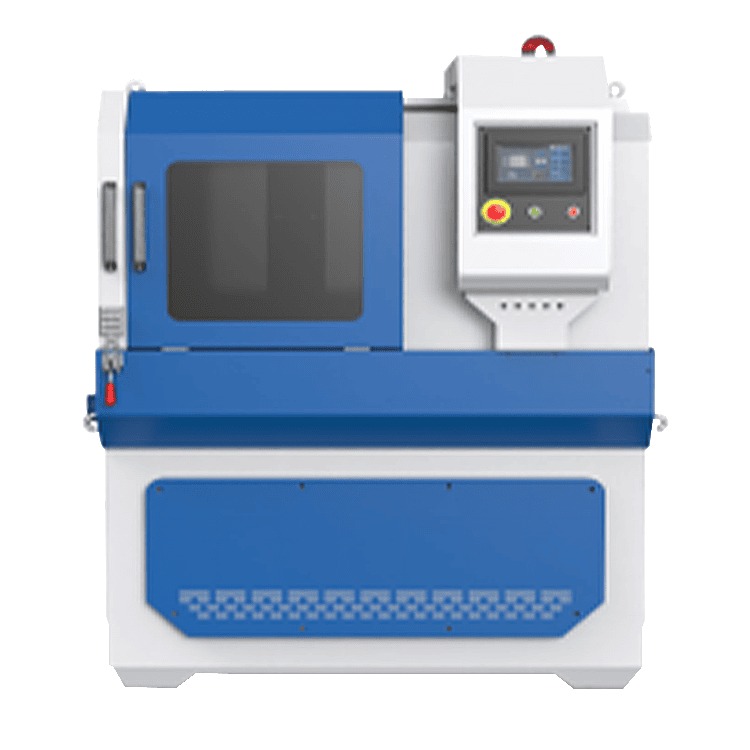

KSCUT-130Z Metallographic automatic cutting machine (middle size)
1、Application：
This machine is automatically controlled by Siemens PLC. It uses the control system to drive the steps, stepper motor motion control, and automatic and precise control of the X, Y and Z directions. The cutting feed speed can be changed according to the hardness of the material to achieve the fastest cutting effect and is very reliable. sex and control.
2、Parameters
Cutting method
Chop cutting, push cutting, sweeping cutting
Cutting speed
0.01-1mm/s (adjustment step is 0.01)
Reset mode
Automatic
Control system
Siemens PLC 7-inch touch LCD screen
Spindle speed
2800 rpm
Maximum stroke
Z axis 130mm; Y axis 200mm; X axis 100mm
Workbench size
128*320mm 180*320mm
Maximum passing diameter
φ 130mm
Cutting piece size
400*4*32mm
Cutting power
4KW
Power supply
380V/50Hz
Overall dimensions
1350*1100*1750mm (length × width × height)
