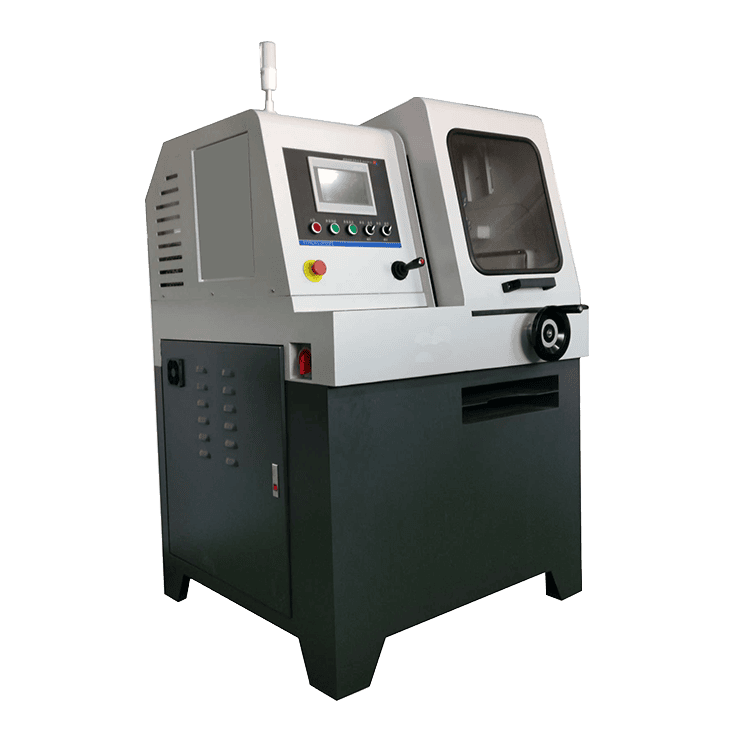

KSCUT-150ZA Metallographic automatic cutting machine

equipment

KSCUT-150ZA

1

The Y axis feed

automatic

2

The Z axis feed

automatic

3

Feed mode

1) Workpiece continuous automatic feeding;
2) Cutting automatic feed;
3) Automatic reciprocating feeding of workpiece;
4) Workpiece automatic cutting back feeding;
5) Automatic cutting and backward feeding;
6) Workpiece and cutting piece are fed simultaneously (curve);
7) Workpiece manual feeding;
8) Manual feeding of cutting pieces;

4

Frequency control of motor speed

500 ~ 3000 RPM

5

Electrical control mode

LCD touch screen, button, rocker

6

The largest travel

The Z axis 100;Y 300 mm

7

Cutting speed

0.01 ~ 3 mm/s

8

Specification of cutting piece

400 * 3 * 32

9

Cutting motor power

4KW

10

Maximum cutting diameter

φ150 mm

11

Maximum cutting length

300mm

12

Cutting stroke (X-axis) (optional)

30mm

13

Sample rotation (R-axis) (optional)

0-30 (rpm), stepless speed regulation

14

Sample thickness during dual blade cutting (optional)

10-30mm

15

Cutting room size

445mm x 625mm (customizable)

16

Cutting clamp

Quick push-pull type one group, clamp height 60mm

17

lighting

LED light

18

Cooling device

Four cooling water and one cooling water gun

19

Circulating water tank

Magnetic filter, 80L

20

Power supply

380V/ 50Hz

21

Weight

200 kg

22

Dimensions (w X D X H) :

1050 mm * 1150 mm * 1800 mm

The specific appearance shall prevail in kind
