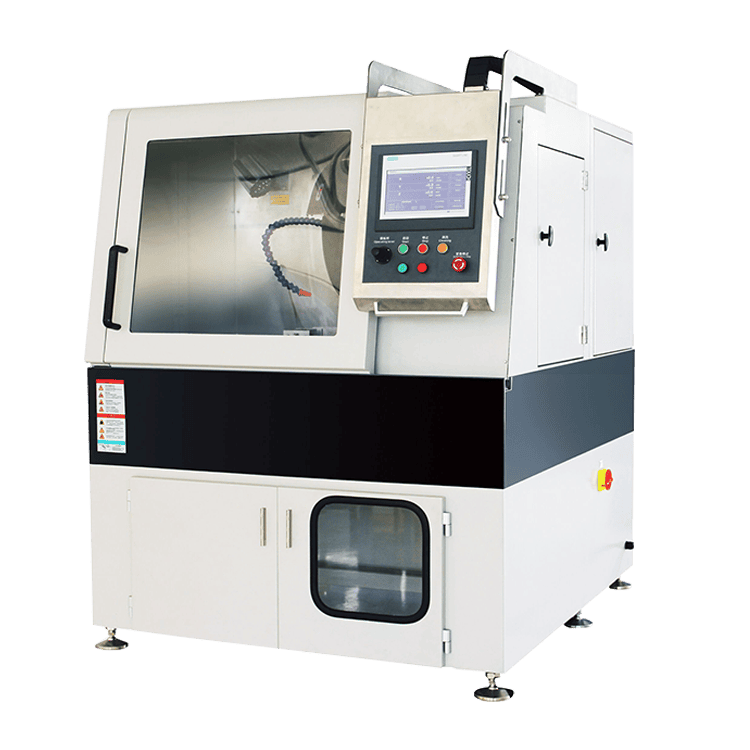

KSCUT-160ZS Metallographic automatic cutting machine

1、Applications

KSCUT-160ZS automatic sample cutting machine is a large automatic metallographic cutting machine, using Siemens programmable controller, with very high reliability, strong control capabilities; Touch screen is used in man-machine interaction. High precision stepping motor is used in control. It is suitable for cutting samples of various metals and non-metallic materials in order to observe the metallographic and lithographic structures of materials. This machine cutting process automation, low noise, easy to operate, safe and reliable, is one of the important equipment for modern laboratory to make solid material samples

2、Main Technical Parameters

Cutting mode: chop cutting, flat push cutting, interactive cutting

Feed mode: continuous feed, pulse feed

Cutting speed: 0.03-1mm/s (adjustment step size is 0.01)

Frequency control: 500~2300 RPM

Maximum stroke: Z-axis 220mm; Y-axis 200mm; X axis 240mm

Maximum cutting diameter: Φ160mm

Cutting power: 7.5kW

Power supply: three-phase 380V / 50Hz

Dimensions: 1300mm (1675mm after opening the door) ×1560mm×1880mm (length × width × height)
