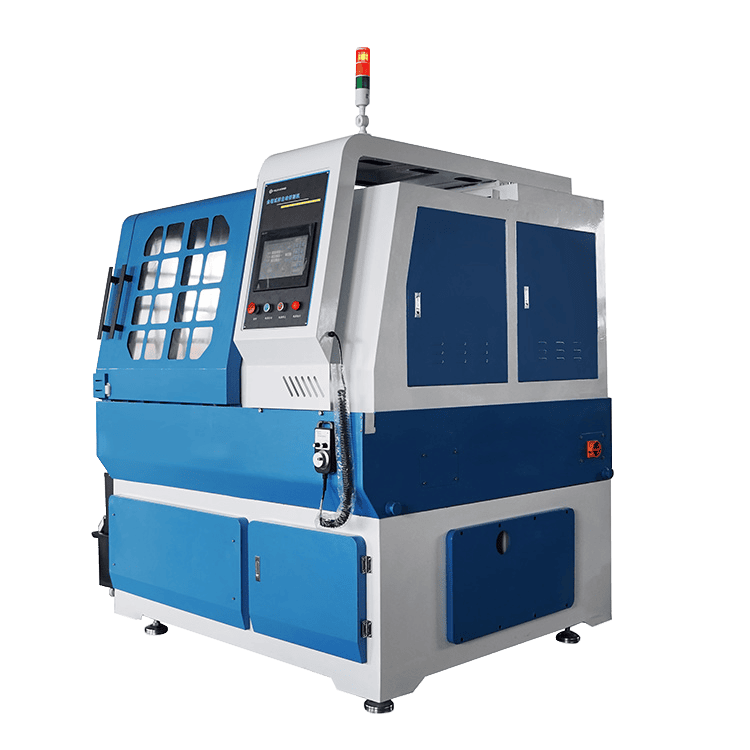

KSCUT-180Z Metallographic automatic cutting machine (Big size)

1、Applications

This machine is a PLC automatic control of metallographic sample cutting machine, driven by the control system, servo motor motion control, X,Y, Z direction automatic precise control, cutting can be changed according to the material hardness feed speed, to achieve the fastest cutting effect, cutting spindle speed frequency control, can adjust the cutting sheet cutting line speed. Very high reliability and control.

2、Main Technical Parameters

Manual/automatic can be selected

Grinding wheel diameter: Ø500xØ32x4

Cutting feed speed: The user can modify the setting speed according to the need

Table size: 600x800 mm  (x*y)

Y-axis maximum travel distance：750 (mm)

Z-axis maximum travel distance：290 (mm)

X axis maximum travel distance：150 (mm)

Maximum cutting diameter：180 (mm)

Cooling water tank volume; 150 liters

Variable frequency motor：7.5kw,

speed：0-2600r/min RPM /min,

power supply：380V,50HZ

Overall dimensions： Length × width × height =1850x1650x1900 mm

Body form：Vertical type

Weight：About 2500 (kg)
