1、Product introduction

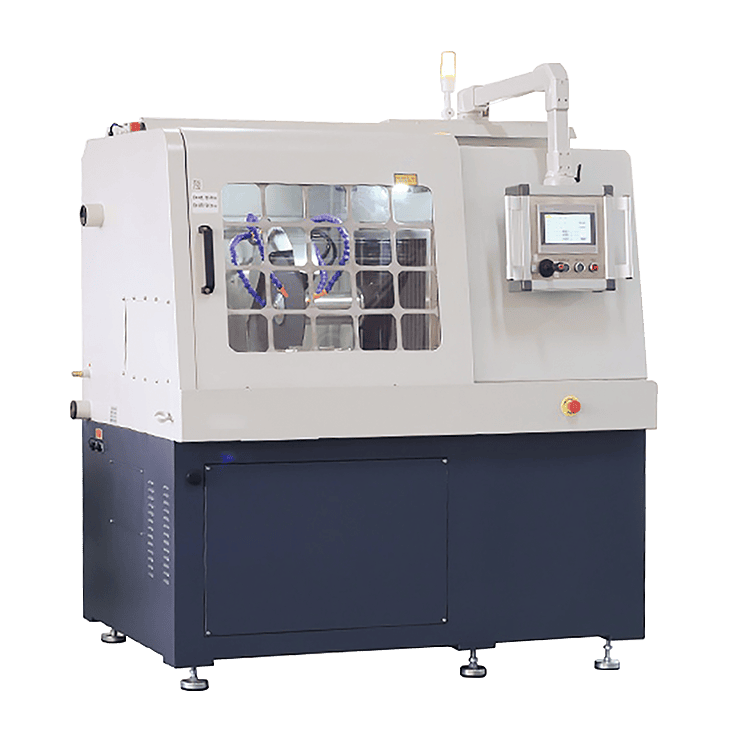

KSCUT-200Z Super Large Automatic Metallographic Cutting Machine, use cutting pieces with a diameter of 500 mm, is one of the cutting machines with the largest cutting capacity at present.Suitable for cutting all kinds of metal, non-metal material sample, in order to observe the material metallographic, lithofacies structure. The machine cutting process automation, low noise, easy to operate, safe and reliable, complete to meet the modern laboratory production of large workpiece cutting requirements.
2、Main technical parameters
Cutting pattern |
Chop cutting, flat push cutting, impact cutting |
Feed mode |
Continuous feed, pulse feed, manual feed |
Motor |
Siemens, 7.5 kW |
Frequency control of motor speed |
500 ~ 3000 RPM |
PLC |
Siemens, LCD touch screen, button, |
Specification of cutting piece |
500*5*32mm |
Maximum cut diameter |
Φ 200 mm |
Cutting speed |
0.01 ~ 3 mm/s |
Axis movement |
Z and Y axis servo motor control;X axis stepping motor control |
Largest strake |
Z axis 150mm; Y axis 330 mm; X axis 145 mm |
Cutting chamber size: |
830 mm * 1040 mm |
Cutting clamp |
Fast push-pull type set, the height of the clamp mouth is 60mm |
Cooling device |
Four cooling water, one cooling water gun |
Circulating water tank |
Magnetic filter |
lighting |
Dual machine working lights |
Power |
380V/ 50Hz |
Overall dimensions |
2253mm×1270mm×1955 (length × width × height) |
Weight |
700 kg |
