1、Product Overview :

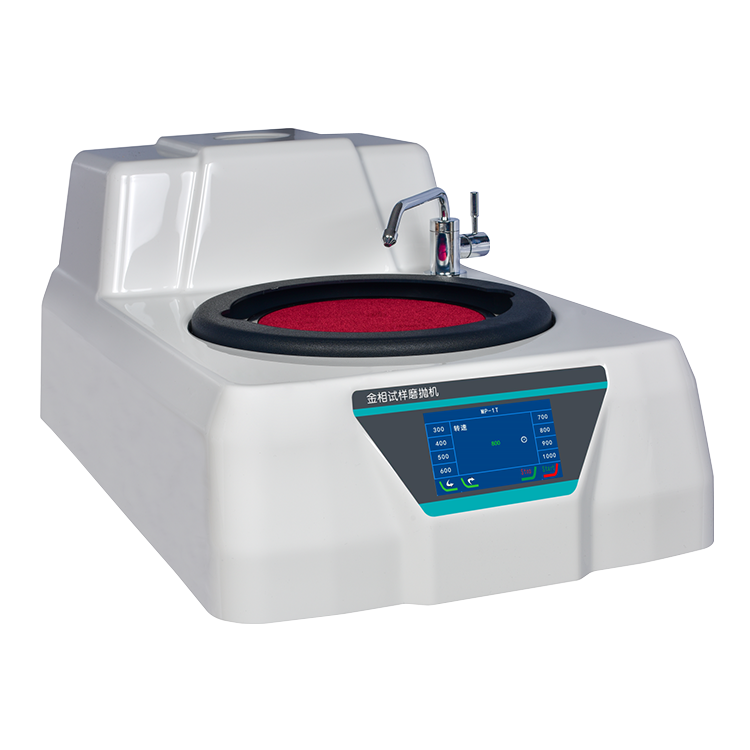

In the process of metallographic specimen preparation, grinding and polishing of the specimen is an indispensable process. After grinding and polishing, the specimen can obtain a bright mirror-like surface. The metallographic specimen grinding and polishing machine adopts a high-end touch screen, which can make the speed of the grinding and polishing disc infinitely adjustable between 50-1000r/min. By replacing the metallographic sandpaper and polishing fabric, the grinding and polishing process of the specimen can be completed, showing a wider range of applicability. The shell adopts overall blister, with a novel appearance, and has the characteristics of stable rotation, low noise, convenient operation, high work efficiency, etc. It also has a cooling device that can cool the specimen during grinding and polishing to prevent the metallographic structure from being damaged due to overheating of the specimen. It is suitable for metallographic laboratories in factories, colleges and universities, and scientific research institutions, and is an excellent equipment for grinding and polishing metallographic specimens.
2、Technical Parameters
Grinding disc diameter
Standard φ203mm (other specifications can be customized)
Grinding disc speed
50-1000r/min (stepless speed regulation)
Grinding disc speed
Eight-speed fixed speed
Grinding disc rotation direction
Forward and reverse
power supply
Voltage: 220V Frequency: 50HZ
Motor
0.25KW
Dimensions
730×420×320mm
weight
35Kg
