1、Applications

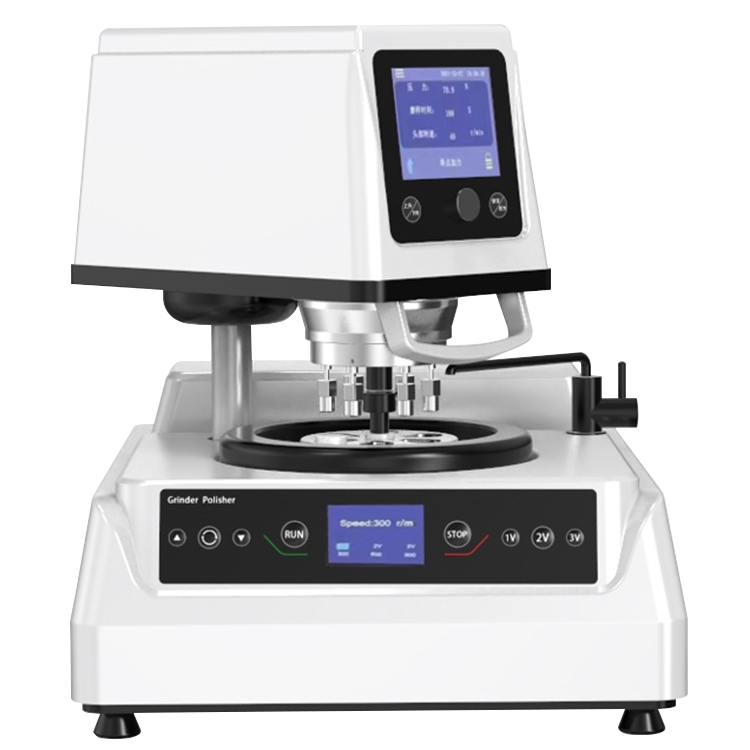

The KSMopao4 automatic grinding and polishing machine is a single table grinding and polishing machine. According to international standards and using international advanced technology, a new type of grinding and polishing equipment with single-point force is developed and manufactured. (No electronic proportional valve, manual pressure regulation)
2、Main Technical Parameters
Model |
KSMopao4 |
Grinding Disc Diameter |
φ250mm (φ230mm, φ300mm can be customized) |
Grinding and polishing disc speed |
50-1000 r/min (stepless speed regulation) and 300/600/900 r/min (3-level fixed speed) |
Grinding and polishing disc steering |
adjustable forward and reverse selection |
Grinding and polishing head speed |
5-150 r/min (stepless speed regulation) |
Number of prepared samples |
4 pcs |
Input air source |
0.4-0.7Mpa |
Loading range |
0-0.7Mpa adjustable |
Sample preparation time |
0-3000S |
Sample diameter |
Factory standard φ30mm (can be customized with diameters φ22-φ45mm) |
Dimensions |
550*760*640mm |
net weight |
60kg |
Input power |
1.1KW |
power supply |
Single phase 220V, 50HZ |
