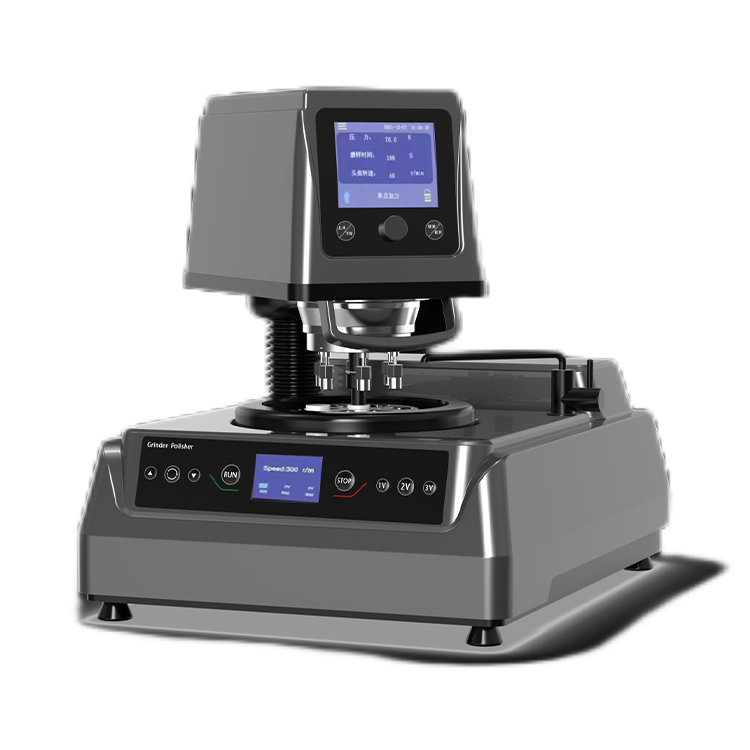

KSMoPao5 Metallographic automatic grinding polishing machine (Pneumatic)

KSMoPao5 type automatic grinding and polishing machine is a double single table grinding and polishing machine, with the rotating direction of grinding and polishing disk can be selected at will, and the grinding and polishing disk can be quickly replaced. Multi-sample clamp tester with pneumatic single point loading function. The machine adopts a microprocessor control system, which makes the speed of grinding disc and grinding head realize stepless adjustable, and the setting of sample pressure and time is intuitive and convenient. Simply replace the grinding disc or sandpaper and fabric to complete the grinding and polishing process. So that this machine shows a wider range of applications. It has the characteristics of stable rotation, safe and reliable, low noise, and the rigidity of grinding and polishing is increased by casting aluminum base.
This machine grinding head electromagnetic lock automatic locking function, safe and convenient. With water cooling device, the sample can be cooled during grinding to prevent the microstructure from being damaged due to overheating of the sample and the abrasive particles can be washed away at any time; With FRP shell and stainless steel standard parts, it is more beautiful and generous in appearance, and improves anti-corrosion, anti-rust performance and easy to clean.

It is suitable for automatic sample preparation in the process of rough grinding, fine grinding, rough polishing and fine polishing of metallographic samples. It is the ideal sample making equipment for laboratories of enterprises, scientific research institutions and colleges and universities

Grinding disc diameter: φ250mm (φ230mm, φ300mm can be customized)

Grinding disc speed: 50-1000 r/min (stepless speed regulation) and 300/600/900 r/min (3-stage constant speed)

Grinding disc steering: adjustable forward and reverse rotation options

Grinding head speed: 5-150 r/min (stepless speed regulation)

Number of samples prepared: 4

Input air source: 0.4-0.7Mpa

Sample preparation time: 0-3000 S

Sample pressure: single point 20-70N center 0-300N

Sample diameter: factory standard φ30mm (φ22-φ45mm can be customized)

Input voltage: single-phase AC220V 50Hz

Input power: 1.1KW

Outer size: 550*760*640mm

Net weight: 60KG
