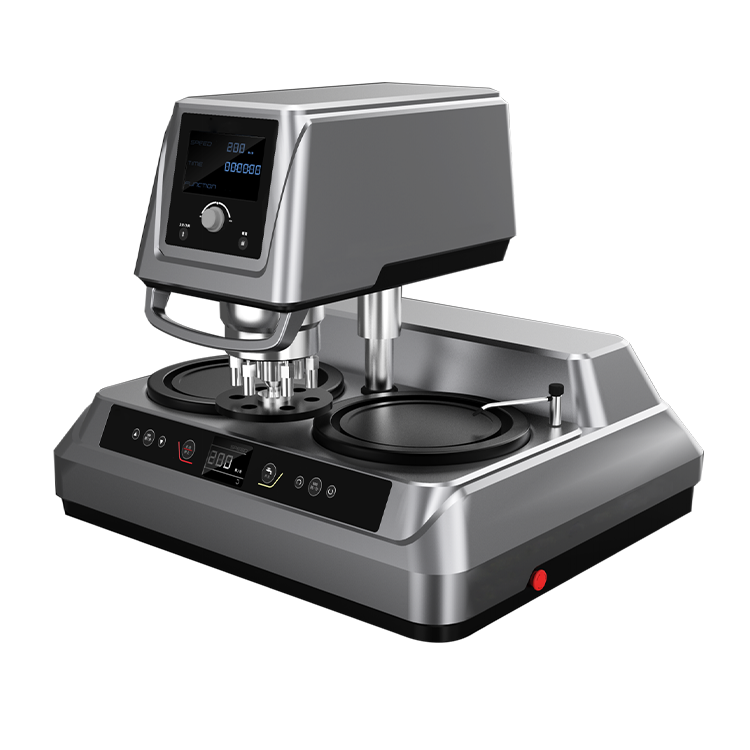

KSMopao5S Metallographic automatic grinding polishing machine (Pneumatic)
1、Applications
The KSMopao5S automatic grinding and polishing machine is a double-disc desktop machine, which is an integrated machine with central force pressurization and single-point pressurization. It is a new generation of high-precision, automated sample preparation process grinding and polishing equipment manufactured in accordance with international standards and using international advanced technology. It has the functions of optional selection of the rotation direction of the grinding and polishing disk, quick replacement of the grinding and polishing disk, multi-sample clamp and pneumatic single-point loading. This machine adopts an advanced microprocessor control system, which makes the rotation speed of the grinding and polishing disc and grinding and polishing head infinitely adjustable, and the sample preparation pressure and time settings are intuitive and convenient. Just replace the grinding and polishing disc or sandpaper and fabric to complete the grinding and polishing process. This enables the machine to exhibit a wider range of applicability. It has the characteristics of stable rotation, safety and reliability, low noise and the use of cast aluminum base to increase the rigidity of grinding and polishing.
2、Main Technical Parameters
Model
KSMopao5S
Grinding Disc Diameter
φ250mm (φ230mm, φ300mm can be customized)
Grinding and polishing disc speed
50-1000 r/min (stepless speed regulation) and 400 / 600 / 800 / 1000 r/min (4-level fixed speed)
Grinding and polishing disc steering
adjustable forward and reverse selection
Grinding and polishing head speed
5-150 r/min (stepless speed regulation)
Number of prepared samples
6 pcs
Input air source
0.4-0.7Mpa
Loading range
0-0.7Mpa adjustable, factory parameters are set within 0.2Mpa
Sample preparation time
0-3000S
Sample diameter
Factory standard φ30mm (can be customized with diameters φ22-φ45mm)
Machine Dimensions
735*570*590mm
Packing Dimensions
935*865*540mm
net weight
100kg
gross weight
102kg
Total power
900W
power supply
Single phase 220V, 50HZ
