1、Applications

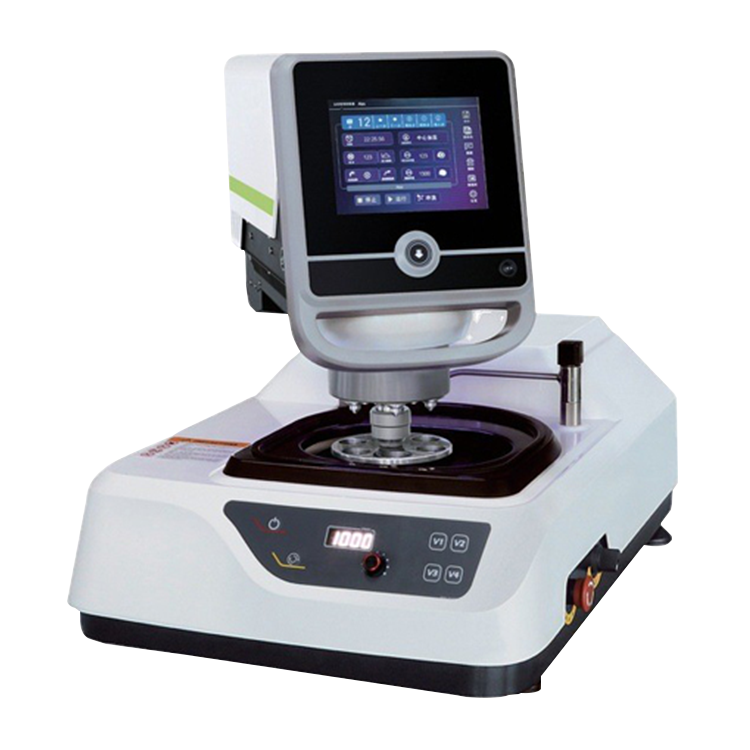

The KSMopao 3 automatic metallographic sample grinding and polishing machine is a new generation of high-precision, automated sample preparation process grinding and polishing equipment manufactured in accordance with international standards and using international advanced technology. This machine is equipped with a water cooling device and an abrasive scouring nozzle, which can cool the sample during grinding to prevent damage to the metallographic structure due to overheating of the sample and to scouring away the abrasive particles at any time; it is also equipped with an ABS shell and stainless steel Standard parts are more beautiful in appearance, have improved anti-corrosion and anti-rust properties and are easy to clean. It is suitable for automatic sample preparation of metallographic samples from rough grinding, fine grinding, rough polishing to fine polishing. It is an ideal sample preparation equipment for enterprises, scientific research institutions and laboratories of universities and colleges.
2、Main Technical Parameters
Specification
KSMopao 3
Machine power supply
Single phase AC220V 50Hz
input power
1.1KW
Grinding and polishing disc diameter
Φ250mm(standard),customized φ203mm,φ300mm
Grinding and polishing disc speed
0~1000r/min
150r/min 300r/min(Two-level speed control)
Grinding and polishing disc direction
Adjustable clockwise or counterclockwise
Grinding and polishing head speed
50~150r/min(Stepless speed)
Single point force loading
5~60N
Sample quantity
6个(Standard)
Sample size
Φ30mm(Standard),Customized φ22mm,φ25mm,φ40mm
Sample preparation time
0~995(s)
Compressed air pressure
0.6~0.9Mpa
Dimensions
594×795×687mm
Net weight
98kg
Gross weight
125kg
