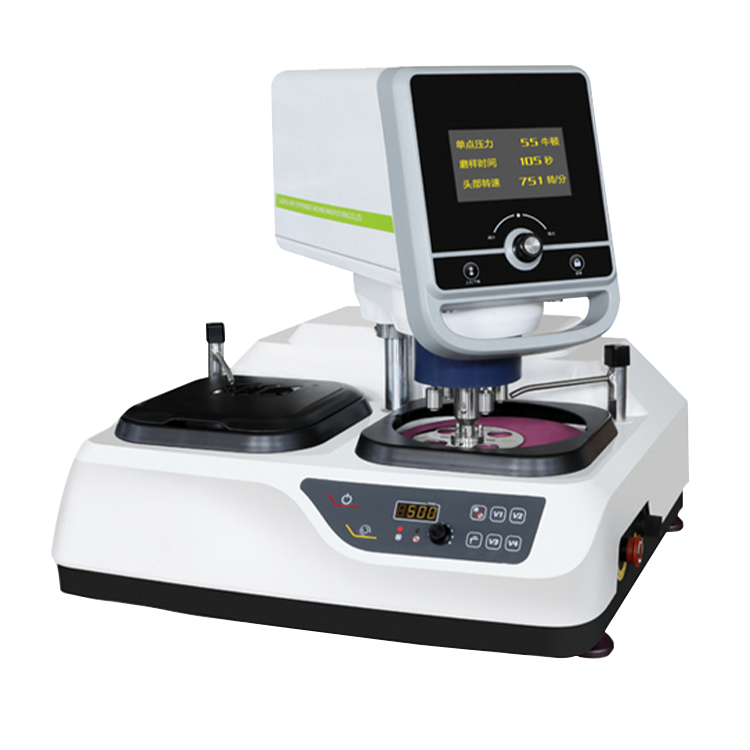

KSMoPao2S Metallographic automatic grinding polishing machine

1、Applications

KSMoPao2S automatic grinding and polishing machine is a two-disk desktop machine, which is a new generation of high-precision grinding and polishing equipment manufactured according to international standards and using international technology. The machine adopts a microprocessor control system, which makes the speed of grinding disc and grinding head realize stepless adjustable, and the setting of sample pressure and time is intuitive and convenient. The operator only needs to replace the grinding disc or metallographic sandpaper and polishing fabric to complete the grinding and polishing process, which makes the machine show a wider range of applications. The machine has a grinding disc rotation direction can be selected, the grinding disc can be quickly replaced; Multi-sample holder and pneumatic single point loading; Automatic abrasive distribution (dispenser optional) and other functions, but also with smooth rotation, safe and reliable, low noise and cast aluminum base to increase the rigidity of grinding and polishing features. The machine is equipped with water cooling device and abrasive scouring nozzle, which can cool the sample during grinding, so as to prevent the microstructure of the sample from being damaged due to overheating and the abrasive particles can be washed away at any time; With ABS shell and stainless steel standard parts, it is more beautiful and generous in appearance, and improves anti-corrosion, anti-rust performance and easy to clean. The KSMoPao2S automatic grinding machine is suitable for the automatic preparation of metallographic samples in the process of rough grinding, fine grinding, rough polishing and fine polishing. It is the ideal sample preparation equipment for enterprises, scientific research institutions and universities laboratories.

Grinding disc speed: 50 ~ 1000r/min(stepless speed regulation) 150 r/min, 300r/min (two-stage fixed speed)

Grinding head speed: 50 ~ 150r/min (stepless speed regulation)

Loading range: 5 ~ 60 Newton (N)

Sample diameter: φ30mm (φ22mm and φ45mm or other sizes can be customized)

Maximum number of samples produced each time: 4

Working lighting: LED

Input voltage: single-phase AC220V 50Hz

Input power: 1.1KW

Dimensions: 758×785×680 (mm)

Net weight: 128kg

Gross weight: 152kg
