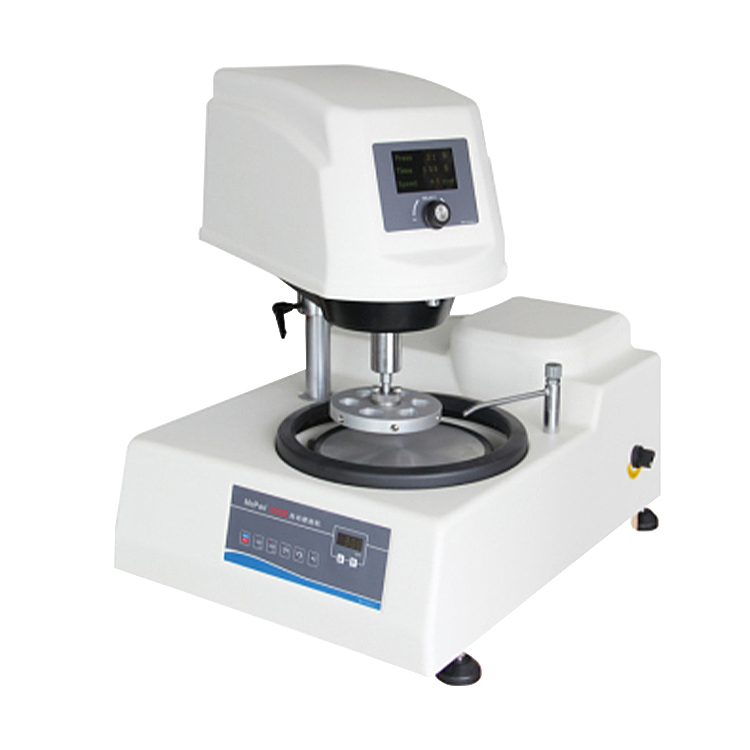

KSMoPao1000 Metallographic automatic grinding polishing machine

1、Applications

KSMoPao1000 automatic grinding and polishing machine is a single-disk desktop machine, which is a new generation of high-precision grinding and polishing equipment manufactured according to international standards and using international advanced technology.

The KSMoPao1000 automatic grinding and polishing machine can choose the rotation direction of the grinding disc, and the grinding and polishing disc can be changed quickly. Multi-sample holder and mechanical central force loading; Abrasive automatic distribution and other functions. The machine adopts the advanced microprocessor control system, so that the speed of the grinding disc and the grinding head can be adjusted continuously, the sample pressure and time setting are intuitive and convenient, and only need to replace the grinding disc or sandpaper and fabric to complete the grinding and polishing operation, so that the machine shows a wider range of applications.

The machine is equipped with water cooling device, which can cool the sample during grinding to prevent the metallographic structure from being damaged due to overheating of the sample; Coupled with ABS shell and stainless steel standard parts, it is more beautiful and generous in appearance, and improves anti-corrosion, anti-rust performance and easy to clean, in addition, the machine also has the characteristics of smooth rotation, safety and reliability, compact structure and low noise.

The KSMoPao1000 automatic grinding and polishing machine is suitable for the automatic preparation of metallographic samples in the process of rough grinding, fine grinding, rough polishing and fine polishing. It is the ideal sample preparation equipment for enterprises, scientific research institutions and universities.

2、Main Technical Parameters

Grinding disc diameter: φ250mm

grinding disc speed: 50-600r/min (stepless speed regulation) 150 r/min，300 r/min (two-stage fixed speed)

grinding head speed: 50-100r/min (stepless speed regulation)

loading range: 5-150 Newton (N)

sample time: 60-999 seconds (S)

sample diameter: φ30mm (customizable)

input voltage: single-phase AC220V 50Hz

input power: 700W

overall size: 632×750×700 (mm)

net weight: 72kg
