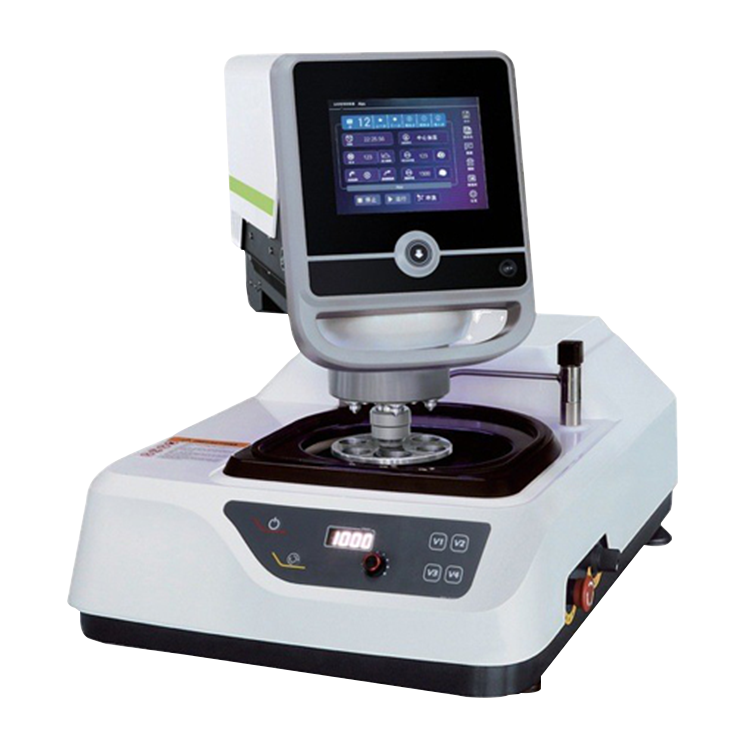

KSMoPao7 Metallographic automatic grinding polishing machine
1、Applications
KSMoPao7 automatic metallographic sample grinding machine is a new generation of high-precision, automatic sample preparation process grinding and polishing equipment manufactured according to international standards and using international technology. The machine adopts a microprocessor control system, which makes the speed of grinding disc and grinding head realize stepless adjustable, and the setting of sample pressure and time is intuitive and convenient. The operator only needs to replace the grinding disc or metallographic sandpaper and polishing fabric to complete the grinding and polishing process, which makes the machine show a wider range of applications. The machine has a grinding disc rotation direction can be selected, the grinding disc can be quickly replaced; Central loading and single point loading; Automatic abrasive distribution (dispenser optional) and other functions, but also with smooth rotation, safe and reliable, low noise and cast aluminum base to increase the rigidity of grinding and polishing features.2、Main Technical Parameters
|
specification |
KSMoPao7 automatic metallographic sample grinding machine |
|
Machine power supply
|
Single-phase AC220V 50Hz |
|
input power |
2.1KW |
|
Grinding disc diameter |
Φ250mm (standard), can be customized φ203mm, φ300mm |
|
Grinding disc speed |
The value ranges from 0 to 1000r/min. The increment is 20rpm |
|
150 r/min 、300 r/min、600 r/min、 1000 r/min（Four-stage constant speed） |
|
|
Grinding disc steering |
Adjustable clockwise or counterclockwise |
|
Rotational speed of polishing head |
0 ~ 150r/min (stepless speed regulation) |
|
Single point force loading |
5～60N |
|
Central force loading |
20-200 Newtons (N) |
|
Sample quantity |
6 PCS (standard) |
|
specimen size |
Φ30mm (standard), can be customized φ22mm, φ25mm, φ40mm |
|
Sample preparation time |
0 to 12 hours |
|
language |
16 languages |
|
Number of programs |
Store 256 groups of programs (grinding and polishing recipes) |
|
compressed air pressure |
Greater than 0.35 (Set the external pressure regulator filter to 0.5MPa) |
|
boundary dimension |
596×714×707 |
|
net weight |
102kg |
