1、Applications

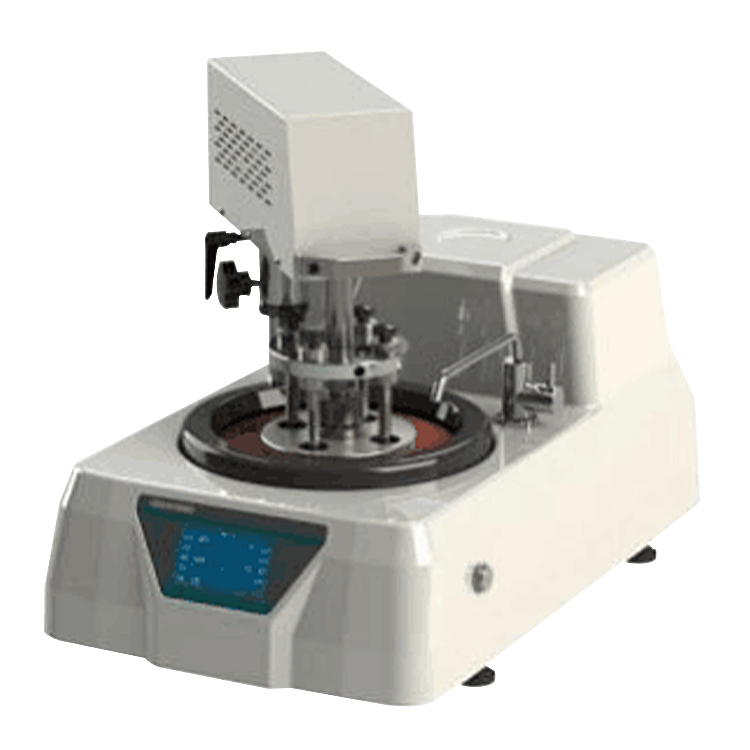

In the process of metallographic sample preparation, the grinding and polishing of the sample is an essential process. After grinding and polishing, the surface of the sample can be obtained as bright as a mirror. KS-MPB-1T semi-automatic metallographic sample grinding and polishing machine adopts high-end touch screen, and is equipped with electric grinding and polishing head, which can simultaneously grind and polishing four samples at one time. It has the characteristics of smooth rotation, hands liberation, low noise, easy operation and high work efficiency. The speed of grinding and polishing disk is between 50-1000r/min without extremely adjustable. By replacing the metallographic sandpaper and polishing fabric, the grinding and polishing process of the sample can be completed, showing a wider range of applications. The bottom shell is made of integral blister, with novel appearance, and has its own cooling device, which can cool the sample during grinding and polishing to prevent the metallographic structure from being damaged due to overheating of the sample. Suitable for metallographic laboratory in factories, colleges and universities, scientific research units, is the ideal equipment for metallographic sample grinding and polishing
2、Main Technical Parameters
Disk diameter |
Standard φ250mm(other specifications customized) |
Disk speed |
50-1000r/min (stepless speed regulation) |
Disk speed |
Eight stops |
Grinding disc rotation direction |
positive and negative rotation |
Grinding speed |
60RPM |
Grinding head pressure mode |
Spring mechanical compression |
Clamping quantity |
four |
Countdown function |
The time is set at will, and the machine will stop automatically |
power supply |
Voltage: 220V frequency: 50HZ |
power |
0.5KW |
boundary dimension |
430X730X530m |
weight |
60Kg |
