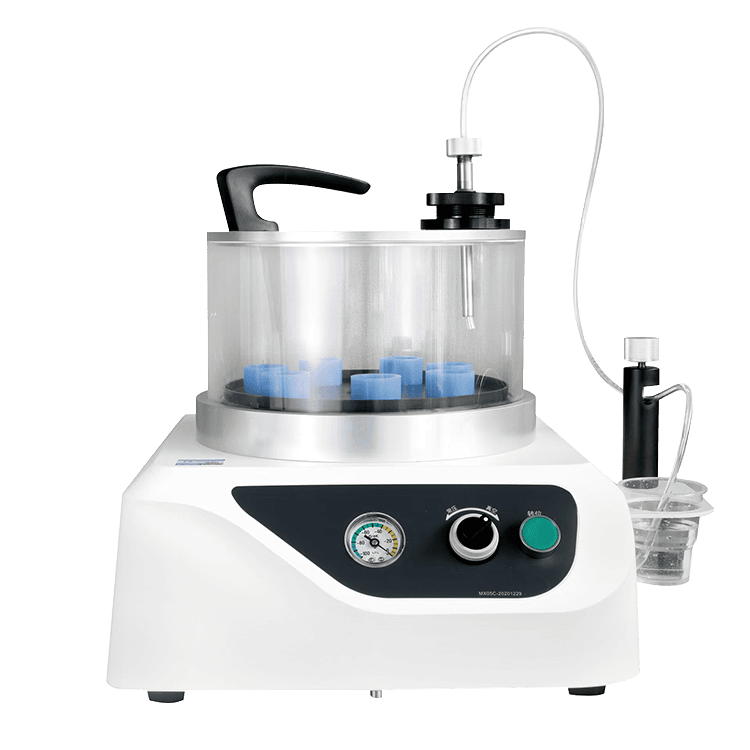

METPRESS-PVM1 Vacuum Mounting Press
1、Applications
METPRESS-PVM1 automatic pressure cold inlaying machine, using PLC control, high strength pressure cooker and built-in air pump, one key to complete the whole inlaying process such as multiple pressure, pressure maintenance, air discharge, etc., for the special requirements of cold inlaying designed special inlaying equipment. By using this device, the bubbles and pores in the embedded sample can be greatly reduced without changing the physical and chemical properties of the resin, providing the best results for subsequent sample polishing and microstructure analysis.
2、Main Technical Parameters
|
Name |
METPRESS-PVM1 |
|
Socketable Item Types |
Cold setting |
|
counter lock |
Pressure setting |
|
work stress |
0.2MPa |
|
Maximum pressure of air source |
0.6 MPa |
|
Sample chamber diameter |
200mm |
|
boundary dimension |
pressure vessel：L300×W400×H300mm mainframe box： L320×W300×H230mm |
|
weight |
pressure vessel：8Kg Main cabinet：10Kg |
