Product introduction

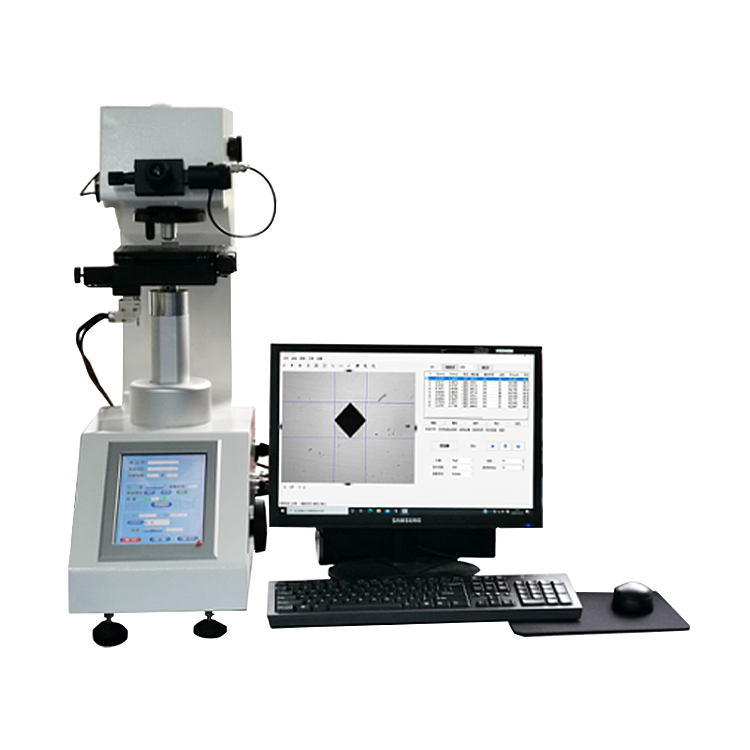

HST-HVS-ATXY digital micro-hardness tester is an ideal high-end micro hardness tester with lifting mechanism of optical cross guide rail, accurate force value and clear image.
Technical parameters
Model
HST-HVS-ATXY
Test force
10GF (0.098N), 25GF (0.245N), 50GF (0.49N), 100GF (0.98N), 200GF (1.96N), 300GF (2.94N), 500GF (4.9N), 1Kgf (9.8N)
Meet standard
GB/T4340.2, ASTM E92
Measurement resolution
0.01µm
Data display output
8 "touch screen display reading, can store 20 test results, USB drive, optional built-in printer and RS-232 interface
Conversion scale
Rockwell、Brinell
Hardness test range
8~2900HV
Test force application method
Automatic (loading, dwell time, unloading)
Test microscope magnification
400X(test), 100X (test, observation)
Test force dwell time
1-99s
Maximum allowable specimen height
160mm
Distance from indenter to wall
160mm
Size
540*260*650mm
Weight
About 50 kg
Power supply
AC220V ± 5%, 50 to 60 HZ
