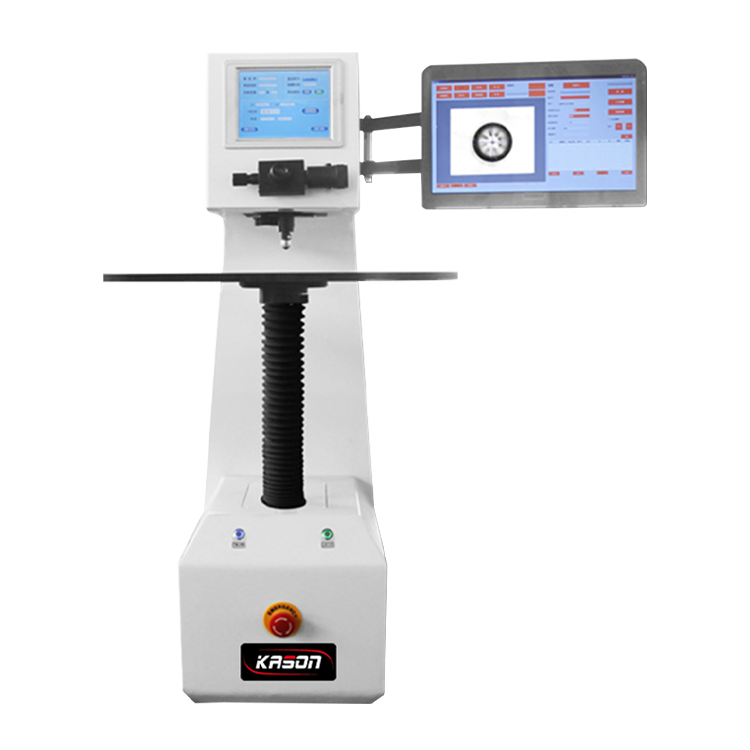

HTB-3000T-AZF Full Automatic Brinell Hardness Tester
Product introduction
1)The force value ranges from 31.25-3000kGF;12 kinds of Brinell ruler, which can be customized by users;
2)The Z-axis rises and falls automatically. After placing the sample, it rises automatically and begins to press marks.Electric loading closed-loop control, automatic loading;
3)Each gear force is automatically compensated, and the precision of the force value (3000Kg) is increased by one order of magnitude to 1/1000;
4)Automatic turret, indenter position and measurement position automatic conversion;
5)When measuring indentation, it is fully automatic focusing without manual adjustment.
6)The indentation can be measured both by eyepiece and by computational maneuvering, using the first dual-optical system with built-in camera and micrometer eyepiece.
7)According to the standard block with different force value, the hardness value is automatically corrected.
8)Large sample space, large sample can be placed; On - the - go, no need to install the weight, no need to install debugging; Touch screen interface, easy to operate, any language version;
9)More sample and test information can be set and saved; Setting parameters of password protection;
10)When the hardness tester is used independently, the data usb disk is directly saved in EXCEL format for easy editing and processing.
11)The products are designed and produced by ourselves, with independent intellectual property rights and software Copyrights, which can be customized and upgraded for a long time.
Technical parameters
Model
HTB-3000T-AZF
Hardness tester host parameters
Brinell hardness scale
HBW1/31.25 HBW2.5/62.5 HBW2.5/187.5 HBW5/125 HB 162.5 HBW5/250 HB w5/750 HBW10/100 HB 1500 HBW10/3000 HBW10/500 HBW10/1000
Test force (Kgf)
31.25.5 KGF (306.45N), 62.5 KGF (612.9N), 100KGF (980.7N), 125kGF (1226N), 187.5 KGF (1839N), 250kGF (2452N), 500kGF (4903N), 750KGF (4905n), 1000kGF (7905n), 1500kGF (14710N), 3000kGF (29420N)
Carried standard
BSEN 6506, ISO 6506, ASTM E10, GB/T231
Accuracy of test force
62.5 ~ 250kGF ≤1% 500 ~ 3000kGF ≤0.5%
Measuring device resolution
0.1 um
Hardness resolution
0.1 HBW
Bao load time
0 ~ 99 s
Data output
LCD display
Data store
The measured values are stored in EXCEL format on a usb flash disk
Maximum allowable specimen height
350 mm
Distance from indenter to wall
250 mm
size
700 * 340 * 970 mm
Weight
160 kg
Power supply
AC220± 5%, 50 ~ 60 hz
Software technical parameters
Brinell hardness scale
HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/250 HBW5/750 HBW10/100 HBW10/500 HBW10/1500 HBW10/3000
Carried standard
BSEN 6506, ISO 6506, ASTM E10, GB/T231
Measuring range
15.9-650HBW (ASTM E10 Recommended Effective hardness value)
Measuring device resolution
0.5%
Accuracy of measurement
Plus or minus 0.5%
Digital imaging
5 million industrial-grade digital cameras
Measuring Method
Manual and automatic measurement (for standard samples)
Calibration method
Standard hardness block/length scale
Support language
Chinese/English (optional)
Power supply
USB power supply
