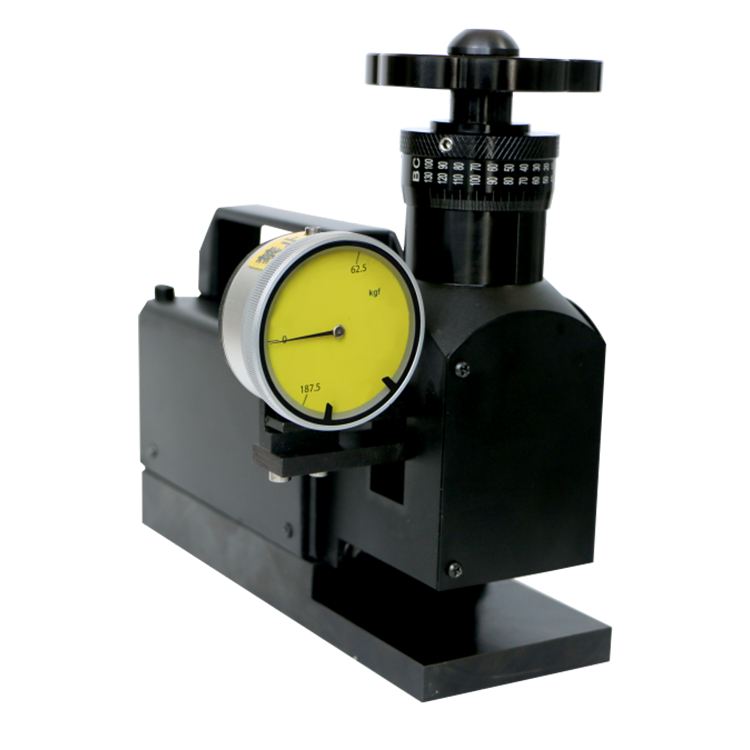

KS-HYB-187.5Y Magnetic Brinell Hardness Tester
Applications
KS-HYB-187.5Y magnetic Brinell hardness tester uses magnetic suction disc to fix Brinell hardness tester on the surface of steel parts, according to the Brinell test principle to complete the hardness test, the test method conforms to the standard GB/T 231.2. It has wide application range, simple operation, good economy and practicability.
Main Technical Parameters
|
名 称 |
规 格 |
|
洛氏总试验力
|
62.5、187.5kgf |
|
612.9、1839N |
|
|
测 量 范 围 |
100~650 HBW |
|
示值误差 |
符合GB/T 231.2 |
|
重复性误差 |
符合GB/T 231.2 |
|
试验力误差 |
≤±1%，符合GB/T 231.2 |
|
硬 质 合 金 压 头 |
φ2.5 |
|
外 形 尺 寸 |
232×131×171(mm) |
|
净 重 |
13KG |
