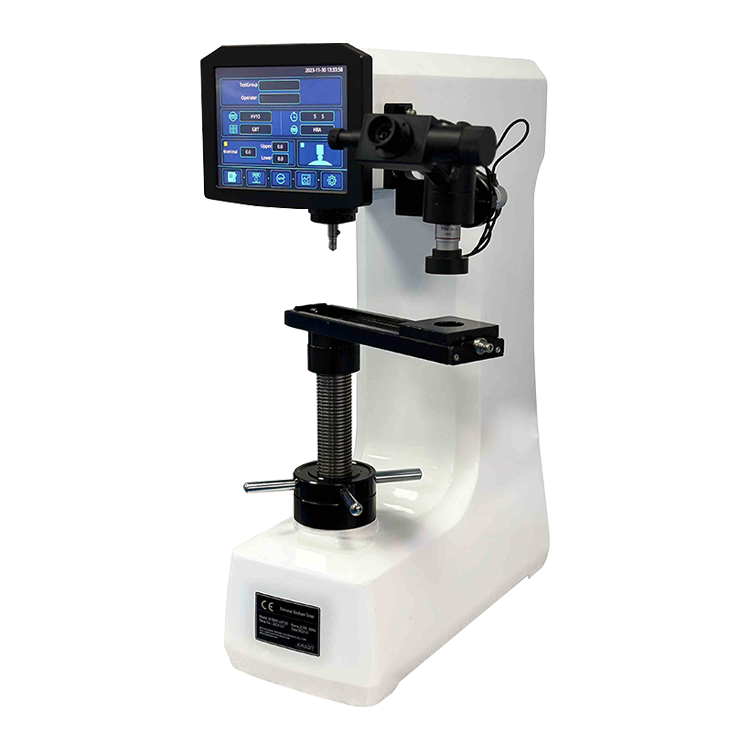

HTBRV-187.5TE Touch screen display Universal Hardness Tester

Features:

Model HTBRV-187.5TE is used electronic loading control instead of weight loading control, it is equipped with a newly-designed large displaying screen with good reliability, excellent operation and easy watching, thusit isahigh-tech product combining the optic, mechanic and electric features.It has Brinell, Rockwell and Vickers three test modes and many levels of test force, which can test several kindsof hardness.

Technical Parameters:

Model：HTBRV-187.5TE

Rockwell Test Force：60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)

Brinell Test Force：30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf(980.7N), 187.5kgf (1839N)

Vickers Test Force：30kgf (294.2N), 100kgf (980.7N)

Indenter：Diamond Rockwell Indenter, Diamond Vickers Indenter, ф1.588mm, ф2.5mm, ф5mmBall Indenter

Loading Method：Automatic (Loading/Dwell/Unloading)

Hardness Reading：Touch Screen Display

Test Scale：HRA, HRB, HRC, HRD, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100, HV30, HV100

Conversion Scale：HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW

Magnification：Brinell: 37.5×, Vickers: 75×

Resolution：Rockwell: 0.1HR, Brinell: 0.1HB, Vickers: 0.1HV

Dwell Time：0~60s

Data Output：Built-in Printer，

Max. Height of Specimen：Rockwell: 230mm, Brinell &Vickers: 160mm

Throat：170mm

Power Supply：AC220V ，50Hz

Execute Standard：ISO 6508，ASTM E-18 ，JIS Z2245，GB/T 230.2ISO 6506，ASTM E10-12 ，JIS Z2243 ，GB/T 231.2ISO 6507，ASTM E92 ，JIS Z2244 ，GB/T 4340.2

Dimension：475×200×700mm ，Packing Dimension: 620×420×890mm

Weight：Net Weight: 60kg，Gross Weight: 84kg
