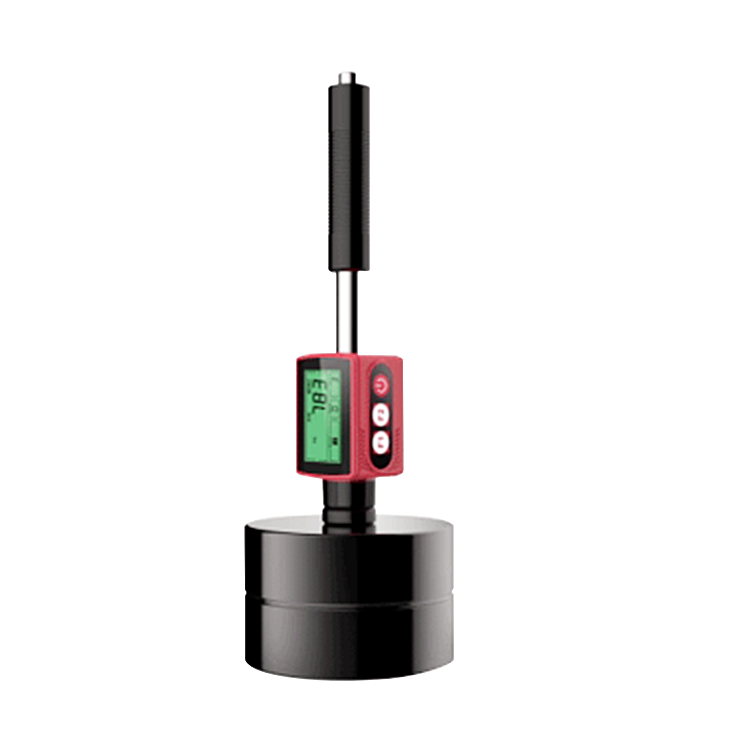

KS5400 Pen Leeb Hardness tester
Features
● Intelligent operation: Easy operation with several buttons, magnitude and Rockwell values displayed.
● Industrial bright OLED display:Good performance of OLED display, even in the sun shine.
●Accurate measurement value: high accuracy shown value error ± 0.5% (HLD=800), showing the value of repeatability of 0.8%
●Supports a variety of hardness standards: HL,HV,HRA,HRC,HRB,HB,HV,HS
●Large capacity of data storage: Mass storage hitherto unknown, leading the technology trend. The retention of data to measure the hardness of 300 groups.
●Support "forged steel (Steel)" materials: Hardness values can be preset, limit, beyond the range of automatic alarm, convenient batch testing needs.
Technical Specification
Measuring range
(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,(30.6-102.6)HS,(59.188)
Hardness scale
HL,HB, HRB, HRC, HRA,HV, HS
Accuracy
HLD:±0.5% (800HLD)
Repeatability Value
HLD:0.8% (800HLD)
Resolution
128*64 OLED display
Power
Rechargeable lithium battery
Working Hours
About 10 hours
Operating temperature
0°C-40°C
Dimensions (mm)
148mm*30mm*25mm
Weight (g)
50
HRA,(13.5-101.7)HRB
